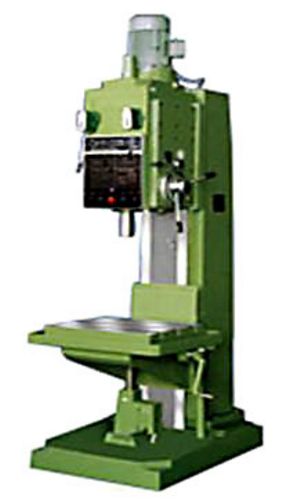

China Z5140 Vertical Drilling Machine


New, China Z5140 Vertical Drilling Machine

  • Largest hole diameter 40mm
  • Feed the greatest resistance 16000 N
  • Max output torque spindle 350 Nm
  • Table size 480mm x 560mm
  • Workstations trip 300mm
  • Spindle distance from centerline to guide 335mm
  • Face to workstations from spindle 0 - 750 mm
  • Spindle taper hole Morse No. 4
  • Spindle speed range 31.5 - 1400 r/min
  • Spindle trip 250mm
  • Spindle box trip 200mm
  • Feed rate 0.056 - 1.8 mm/r
  • Main motor 3 kw
  • Overall Dimensions: 1,080 mm (L) x 810 mm (W) x 2,510 mm (H)
  • Weight approximately 2.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill machine, column drilling machine, vertical drill stand, vertical drilling machine, drill press, pedestal drilling machine, pedestal drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
