Zhongyang Sams Pillar Drill

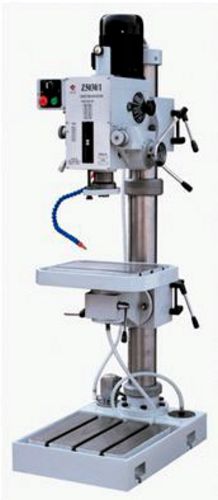

China Z5040/1 Vertical Drilling Machine

NDPAM001:

New, China Z5040/1 Vertical Drilling Machine

  • Drilling capacity 40 mm
  • Spindle travel 130 mm
  • Spindle taper MT4
  • Step of speed 6
  • Range of spindle speed: (6 steps) 50 HZ: 80-1250 RPM; 60 HZ: 95-1500 RPM
  • Speed-steps of automatic feeding of spindle 6
  • Speed range 0.06-0.30 RPM
  • Min. distance from spindle axis to column 290 mm
  • Distance from spindle nose to table 725 mm
  • Distance  from spindle nose to stand table 1125 mm
  • Max. travel of table headstock 250 mm
  • Swivel angle of headstock (horizontal) 360°
  • Size of work table bracket 600 mm
  • Swivel angle table of availability 380 x 300 mm
  • Swivel angle of table horizontally 360°
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill machine, column drilling machine, vertical drill stand, vertical drilling machine, drill press, pedestal drilling machine, pedestal drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
