Zhongyang Sams Bench Drill


China Z5050 Bench Drilling Machine

NDBZC003:

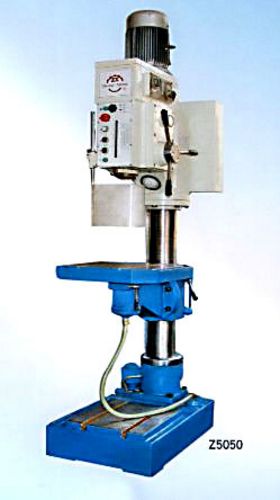

New, China Z5050 Bench Drilling Machine

  • Max drilling capacity 50mm
  • Max tapping capacity M20
  • Column diameter 140mm
  • Spindle travel 150mm
  • Distance from spindle axis to column generating line 330mm
  • Max distance from spindle nose to worktable 610mm
  • Max distance from spindle nose to base 1150mm
  • Spindle taper MT4
  • Spindle speeds: (50 Hz) 70-2600 rpm, 12 steps
  • Dimension of worktable surface 500 x 500mm
  • Table travel 540mm
  • Dimension of base 760 x 500mm
  • Overall height 2200mm
  • Main motor 1.5 / 2.2 kw
  • Overall Dimensions: 1,140 mm (L) x 690 mm (W) x 2,150 mm (H)
  • Weight approximately 670 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used bench drill (bench drill, bench drilling machine, bench drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
