Zhongyang Sams Bench Drill

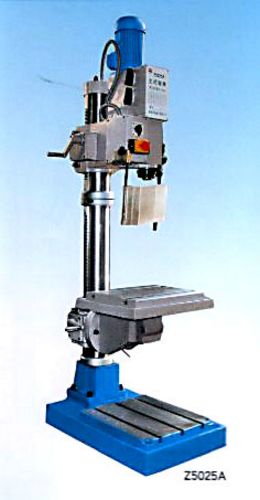

China Z5025A Bench Drilling Machine

NDBZC001:

New, China Z5025A Bench Drilling Machine

  • Max drill diameter 25mm
  • Max spindle travel 140mm
  • Spindle taper MT3
  • Spindle speeds 100-2900 rpm (8 steps)
  • Distance from spindle axis to column 315mm
  • Max distance from spindle nose to surface of worktable 660mm
  • Max travel of supporting block of worktable 480mm
  • Max distance from spindle nose to working surface of base plate 1200mm
  • Dimension of worktable 315 x 415mm
  • Dimension of effective working area of base plate 475 x 400mm
  • Main motor 0.75 / 0.55 kw
  • Overall Dimensions: 788 mm (L) x 560 mm (W) x 1,820 mm (H)
  • Weight approximately 440 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used bench drill (bench drill, bench drilling machine, bench drill press), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.


Home | Bench Drill Listing | New Machinery Categories

Upon request, our machines can be inspected and tested under power.
