China CK5240C CNC Double Column Vertical Lathe

NBVQE021:

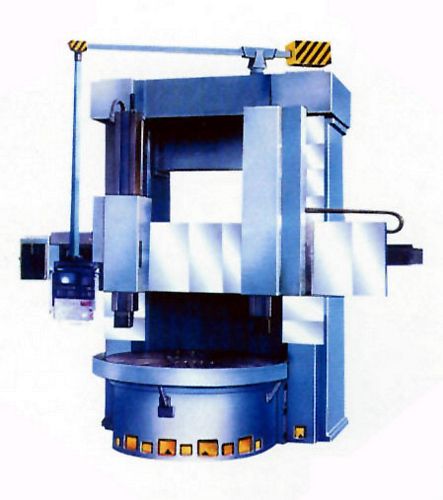

New, China CK5240C CNC Double Column Vertical Lathe

  • Table diameter 2830mm
  • Max cutting diameter 4000mm
  • Max height of workpiece 2000mm
  • Max weight of workpiece 20,000 kg
  • Max cutting force of right rail head 35000 N; left rail head 28000 N
  • Max torque 63000 N.m
  • Table speed range 2 - 63 r/min (AC variable-frequency two grades stepless)
  • Feed range of right rail head 0.1 - 4000 mm/min (stepless)
  • Feed range of left rail head 0.2 - 145 mm/min (18 steps)
  • Travel of crossbeam 1700mm
  • Rapid traverse speed of right rail head 4000 mm/min
  • Travel of rail head: Horizontal 2150mm; Vertical 1250mm
  • Dimension of tool arbor (WxH): 40 x 50mm
  • Main motor 55 kW
  • Overall Dimensions: 6,355 mm (L) x 5,200 mm (W) x 5,600 mm (H)
  • Weight approximately 50 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
