China CQ5240B Double Column Vertical Lathe

NBVQE017:

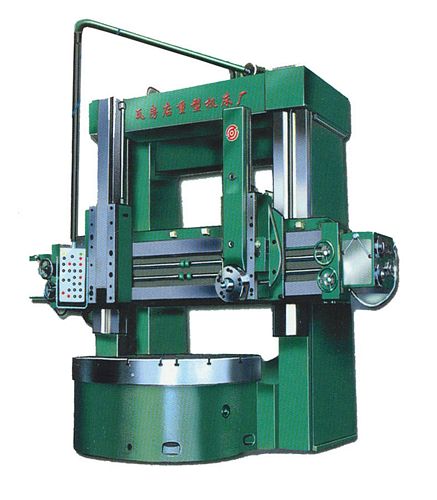

New, China CQ5240B Double Column Vertical Lathe

  • Table diameter 2830mm
  • Max turning diameter of tool head 4000mm
  • Max workpiece height 2000mm
  • Max workpiece weight 10,000 kg
  • Table speeds range 2 - 63 r/min (16 steps)
  • Feed range of vertical tool head 0.25 - 145 mm/min (18 steps)
  • Total cutting force 55860 N
  • Max cutting force of tool head: Right  29400 N; Left 26460 N
  • Max torque of table 55860 N.m
  • Traverse of tool head: Horizontal 2150mm; Vertical 1250mm
  • Rapid traverse of tool head 1550 mm/min
  • Limit swivel angular of tool head ± 30°
  • Travel of crossrail 1700mm
  • Speed of crossrail displacement 350 mm/min
  • Tool bar section 40 x 50mm (W x H)
  • Main motor 55 kW
  • Overall Dimensions: 6,780 mm (L) x 5,200 mm (W) x 5,975 mm (H)
  • Weight approximately 41 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
