Sunshine Innovation Sams Vertical Boring Machine


China C5225A Double Column Vertical Lathe

NBVQE014:

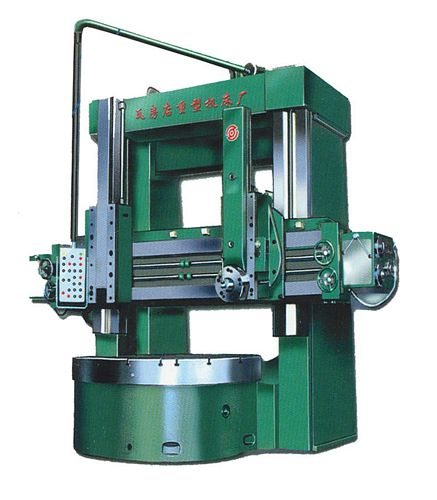

New, China C5225A Double Column Vertical Lathe

  • Table diameter 2250mm
  • Max cutting diameter of workpiece 2500mm
  • Max workpiece height 1600mm
  • Max workpiece weight 20,000 kg
  • Table speeds range 2 - 63 r/min (16 steps)
  • Total cutting force 63000 N
  • Max cutting force of tool head: Right 35000 N; Left 28000 N
  • Max torque of table 63000 N.m
  • Feed range of right vertical tool head: 0.24 - 145 mm/min (18 steps)
  • Feed range of left vertical tool head: 0.24 - 145 mm/min (18 steps)
  • Rapid traverse of tool head 1550 mm/min
  • Traverse of crossrail 1250mm
  • Traverse of tool head: Horizontal 1400mm                                           Right vertical 1000mm; Left vertical 1000mm
  • Main motor 55 kW
  • Overall Dimensions: 5,180 mm (L) x 5,200 mm (W) x 4,870 mm (H)
  • Weight approximately 32 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
