China C5225/5 Double Column Vertical Lathe

NBVQE012:

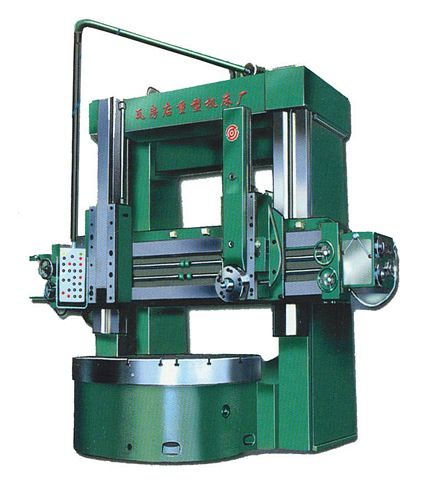

New, China C5225/5 Double Column Vertical Lathe

  • Table diameter 2250mm
  • Max cutting diameter of workpiece 2500mm
  • Max workpiece height 2000mm
  • Max workpiece weight 10,000 kg
  • Table speeds range 2 - 63 r/min (16 steps)
  • Total cutting force 55860 N
  • Max cutting force of tool head: Right 29400 N; Left 26400 N
  • Max torque of table 55860 N.m
  • Feed range of right vertical tool head: 0.24 - 145 mm/min (18 steps)
  • Feed range of left vertical tool head: 0.24 - 145 mm/min (18 steps)
  • Rapid traverse of tool head 1550 mm/min
  • Traverse of crossrail 1700mm
  • Traverse of tool head: Horizontal 1400mm                                           Right vertical 1700mm; Left vertical 1700mm
  • Main motor 55 kW
  • Overall Dimensions: 5,400 mm (L) x 5,200 mm (W) x 7,740 mm (H)
  • Weight approximately 36 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
