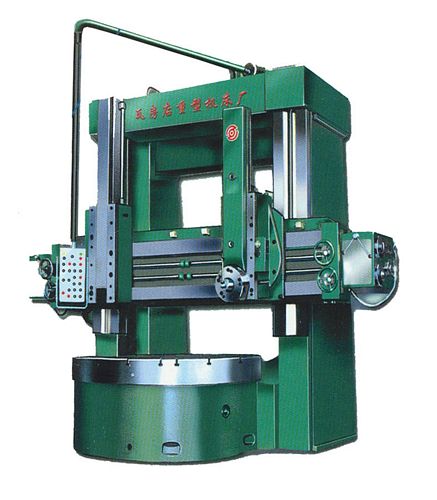

China C5225 Double Column Vertical Lathe

NBVQE008:

New, China C5225 Double Column Vertical Lathe

  • Table diameter 2250mm
  • Max cutting diameter of workpiece 2500mm
  • Max workpiece height 1600mm
  • Max workpiece weight 10,000 kg
  • Table speed range 2 - 63 r/min (16 steps)
  • Total cutting force 63000 N
  • Max cutting force of tool head: Right 35000 N; Left 28000 N
  • Max torque of table 63000 N.m
  • Feed range of right vertical tool head: 0.24 - 145 mm/min (18 steps)
  • Feed range of left vertical tool head: 0.24 - 145 mm/min (18 steps)
  • Rapid traverse of tool head 1550 mm/min
  • Traverse of crossrail 1250mm
  • Traverse of left tool head: Horizontal 1400mm; Vertical 1000mm
  • Traverse of right tool head: Horizontal 1400mm; Vertical 1000mm
  • Main motor 55 kW
  • Overall Dimensions: 5,180 mm (L) x 5,200 mm (W) x 4,870 mm (H)
  • Weight approximately 32 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
