Sunshine Innovation Sams Vertical Boring Machine


China C5231A Double Column Vertical Lathe

NBVQE007:

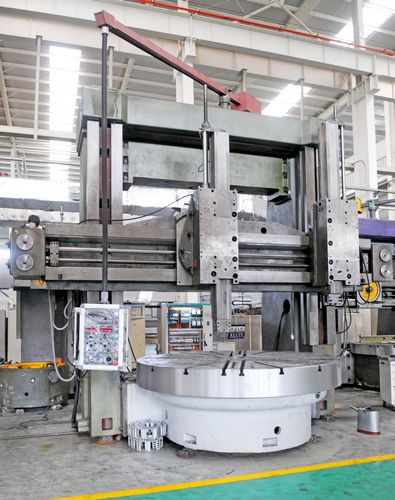

New, China C5231A Double Column Vertical Lathe

  • Table diameter 2830mm
  • Max cutting diameter 3150mm
  • Max height of workpiece 2000mm
  • Max weight of workpiece 32,000 kg
  • Max torque of table 80000 N.m
  • Max cutting force of right rail head 50000 N; left rail head 40000 N
  • Max cutting force 63000 N
  • Table speed range 1 - 50 r/min (18 steps)
  • Feed range of vertical rail head 0.25 - 2160 mm/min (stepless)
  • Rapid traverse of vertical rail head 2160 mm/min
  • Traverse of rail head: Horizontal 1735mm; Vertical 1250mm
  • Rise or down traverse of crossrail 1720mm
  • Rise or down speed of crossrail 350 mm/min
  • Swivel angle of rail head ±30°
  • Tool bar section 40 x 50 mm (W x H)
  • Main motor 55 kW
  • Feed motor 4 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
