China C5112B Single Column Vertical Lathe

NBVQE006:

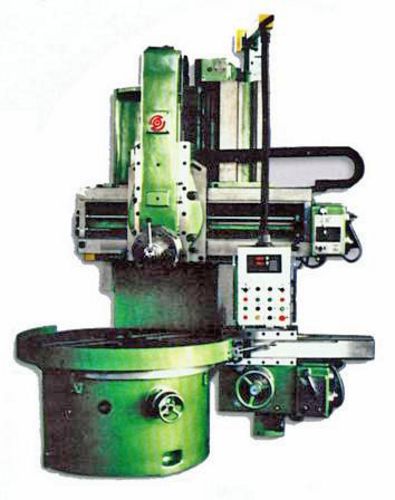

New, China C5112B Single Column Vertical Lathe

  • Table Diameter 1000mm
  • Max. Cutting Diameter of Vertical Head 1250mm
  • Max. Cutting Diameter of Side Head 1100mm
  • Max. Work Piece Height 1000mm
  • Max. Work Piece Weight 3200 kg
  • Table Speed 6.3 - 200 RPM, 16 Step
  • Rail & Side Head Range of Feed 0.8 - 86 mm/min, 12 Step
  • Max. Cutting Force 35000 N
  • Travel Distance of Vertical Head: Horizontal 700mm; Vertical 650mm
  • Travel Distance of Side Head: Horizontal 500mm; Vertical 900mm
  • Travel Distance of Cross Rail 650mm
  • Swivel Angle of Rail Head ±30°
  • Rapid Traverse of Rail & Side Head 1800 mm/min
  • Main Motor 22 kW
  • Overall Dimensions: 2,277 mm (L) x 2,540 mm (W) x 3,403 mm (H)
  • Weight approximately 8.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
