Zhongyang Sams Vertical Boring Machine

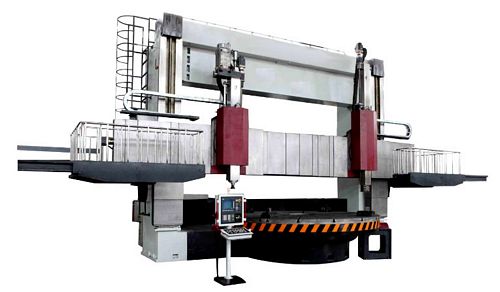

China C5263-3 Conventional Double Column Vertical Lathe


New, China C5263-3 Conventional Double Column Vertical Lathe

  • Max cutting diameter 6300mm
  • Diameter of worktable 5700mm
  • Max weight of work piece 100 ton
  • Max height of work piece 4000mm
  • Speed of work table 2-40 r/min, 2 step
  • Max torque of table turning 90 KNm
  • Tool post (swivelling type): Square ram type
  • Horizontal travel: Left tool head 3450mm; right tool head 3450mm
  • Vertical travel: Left tool head 2000mm; right tool head 2000mm
  • Max travel of crossbeam 2650mm
  • Travel speed of crossbeam 300 mm/min
  • DRO (digital readout system): 2 axes
  • Main motor DC75 kw
  • Weight approximately 132 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
