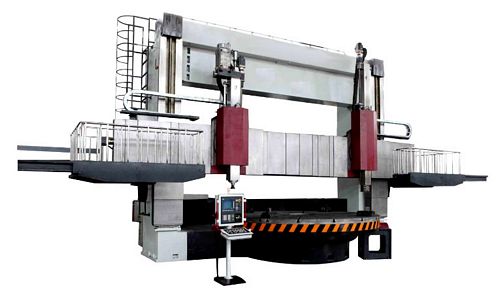

New, China C5263-1 Conventional Double Column Vertical Lathe
- Max cutting diameter 6300mm
- Diameter of work table 4300mm
- Max weight of work piece 50 ton
- Max height of work piece 3150mm
- Speed of work table 2-40 r/min, 2 step
- Max torque of table turning 90 KNm
- Tool post (swivelling type): Square ram type
- Horizontal travel: Left tool head 3450mm; right tool head 3450mm
- Vertical travel: Left tool head 1600mm; right tool head 1600mm
- Max travel of crossbeam 2650 mm
- Travel speed of crossbeam 300 mm/min
- DRO (digital readout system): 2 axes
- Main motor DC75 kw
- Weight approximately 118 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
