Vertical Boring Machine

NBVFT015:

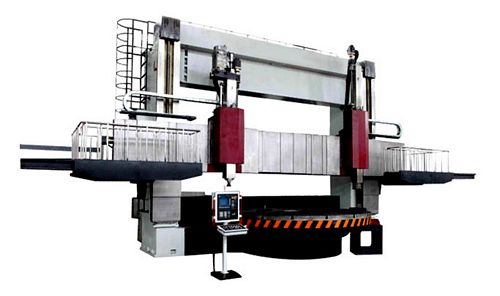

New, China C5235-2 Conventional Double Column Vertical Turret Lathe

Max vertical turret cutting diameter 3500mm
Diameter of worktable 3100mm
Max weight of workpiece 32 tons
Max height of workpiece 2000mm
Speed of worktable 2-63 r/min, 16 steps
Max torque of table turning 63 KNm
Toolpost (swivelling type): Square ram type
Horizontal travel of left tool head1880mm; right tool head 1880mm
Vertical travel of left tool head 1000mm; right tool head 1000mm
Max travel of crossbeam 1650mm
Travel speed of crossbeam 300 mm/min
Main motor AC55KW
Digital readout system 2 axes

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
