Zhongyang Sams Vertical Boring Machine

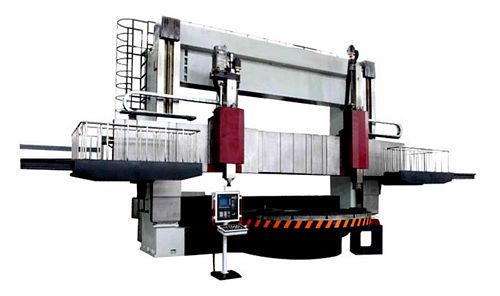

China C5235-1 Conventional Double Column Vertical Turret Lathe


New, China C5235-1 Conventional Double Column Vertical Turret Lathe

  • Max vertical turret cutting diameter 3500mm
  • Diameter of worktable 2830mm
  • Max weight of workpiece 10 tons
  • Max height of workpiece 2000mm
  • Speed of worktable 2-63 r/min, 16 steps
  • Max torque of table turning 63 KNm
  • Toolpost (swivelling type): Square ram type
  • Horizontal travel of left tool head1880mm; right tool head 1880mm
  • Vertical travel of left tool head 1000mm; right tool head 1000mm
  • Max travel of crossbeam 1650mm
  • Travel speed of crossbeam 300 mm/min
  • Main motor AC55KW
  • Digital readout system 2 axes
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
