Zhongyang Sams Vertical Boring Machine


China C5225-2 Conventional Double Column Vertical Turret Lathe

NBVFT010:

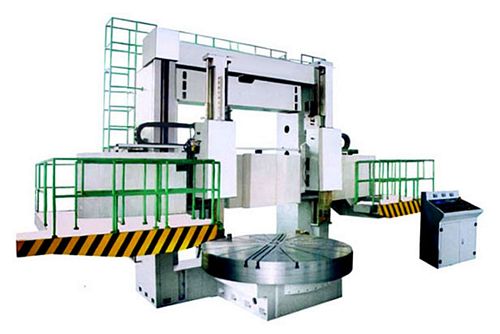

New, China C5225-2 Conventional Double Column Vertical Turret Lathe

  • Max machining diameter 2500mm
  • Diameter of worktable 2250mm
  • Max height of workpiece 2000mm (option 2500mm)
  • Max load of worktable 10 tons
  • Worktable turning speed 2-63 r/min, 16 steps
  • Max torque of worktable turning 63 kN
  • Max cutting force of left toolpost 30 kN; right toolpost 35 kN
  • Left/right vertical toolpost travel (horizontal) 1400m; (vertical) 1000mm
  • Toolpost rapid travel speed 1560mm
  • Cross rail vertical travel speed 350 mm/nin
  • Tool shank section (WxH)) 40 x 50mm
  • Right/left toolpost swing angle ±30°
  • Main motor AC55KW
  • 2 axis DRO for one ram
  • Weight approximately 34 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
