Zhongyang Sams Vertical Boring Machine


China C5240-2 Conventional Double Column Vertical Turning Lathe

NBVFT008:

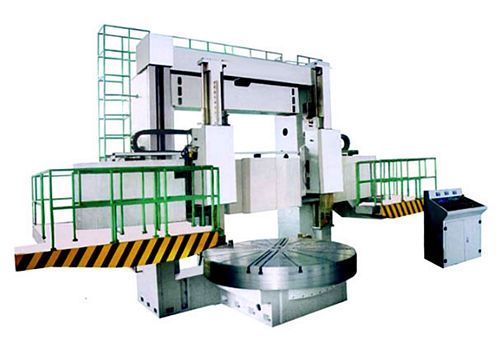

New, China C5240-2 Conventional Double Column Vertical Turning Lathe

  • Max vertical turret cutting diameter 4000mm
  • Diameter of worktable 2830mm
  • Max weight of workpiece 10 ton
  • Max height of workpiece 2000mm
  • Speed of worktable 2-63 r/min, 16 steps
  • Max torque of table turning 63000 N
  • Two rams - one is with 2-axis DRO, another one is without
  • Ram traverse 1000mm
  • Horizontal traverse of left tool head 2150mm; right tool head 2150mm
  • Main motor 55 kw
  • Digital readout system
  • Weight approximately 50 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
