Zhongyang Sams Vertical Boring Machine

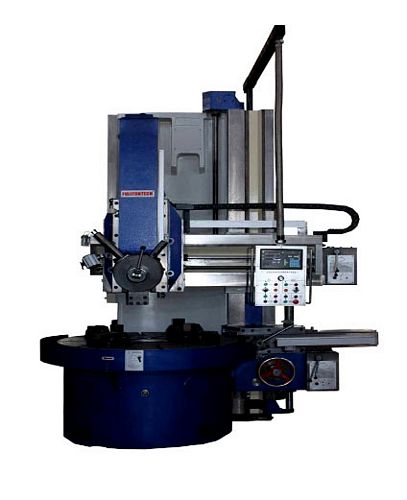

China C5120-2 Conventional Single Column Vertical Turret Lathe


New, China C5120-2 Conventional Single Column Vertical Turret Lathe

  • Max vertical turret cutting diameter 2000mm
  • Side turret cutting diameter 1800mm (optional)
  • Diameter of worktable 1800mm
  • Max height of workpiece 1600mm
  • Max weight of workpiece 8 ton
  • Speed range of worktable turning 3.2-100 r/min (16 step)
  • Vertical/side turret feeding range 0.8-86 mm/min (12 step)
  • Vertical turret traverse (horizontal) 1115mm
  • Vertical turret traverse (vertical) 800mm
  • Side turret traverse (horizontal) 630mm (optional)
  • Side turret traverse (vertical) 900mm (optional)
  • Cross rail traverse 890mm
  • Digital readout two axes DRO
  • Main motor 30 kw
  • Weight approximately 19 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
