China CK5116E CNC Single Column Vertical Lathe

NBVDY012:

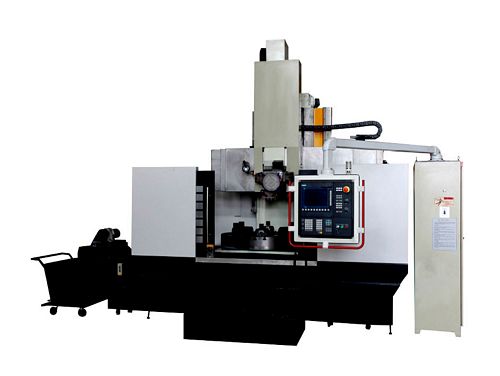

New, China CK5116E CNC Single Column Vertical Lathe

  • Max turning diameter 1600mm
  • Table diameter 1400mm
  • Max turning height 1200mm
  • Rotate range of table 1-200 r/min
  • Stage no. of variable speeds: 4 gears + stepless
  • Max cutting force of vertical tool post: 25000 N (electric tool carrier); 30000 N (square ram)
  • Max torque 32000 N.m
  • Level stroke of vertical tool post 1020mm
  • Vertical stroke of vertical tool post 800mm (electric tool carrier); 1000mm (square ram)
  • Tool rest form: 4 station / square ram
  • Beam stroke 850mm
  • Tool rest rapid traverse speed 6000mm heavy duty cutting model
  • Beam lifting speed 440 m/min
  • Sectional dimension of cutter bar: (l x w) 32 x 32mm
  • Accuracy of positioning 0.03mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
