China C5126E Single Column Vertical Lathe

NBVDY011:

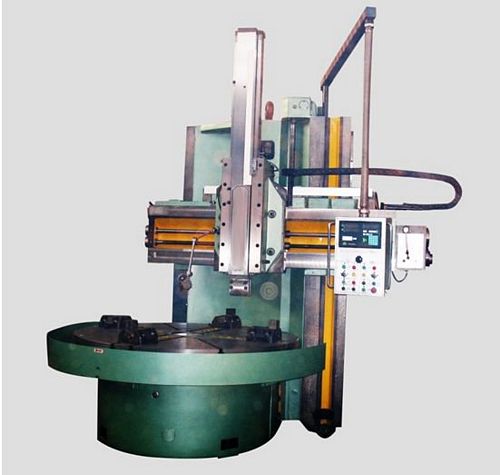

New, China C5126E Single Column Vertical Lathe

  • Max turning diameter of vertical too post 2600mm
  • Table diameter 2250mm
  • Max turning height 1400mm
  • Max weight of workpiece 10 ton
  • Rotate range of table 2-63 r/min, off 16
  • Feeding range of vertical and side tool post 0.8-86 mm/min
  • Feeding stage no. of vertical tool post 12
  • Max cutting force of vertical tool post 30 Kn
  • Max torque of table 45 Kn.m
  • Level stroke of vertical tool post 1500mm
  • Vertical stroke of vertical tool post 1000mm
  • Beam stroke 1250mm
  • Moving degree of vertical tool post ±30°
  • Vertical and side tool rest rapid traverse speed 1.8 m/min
  • Beam lifting speed 0.44 m/min
  • Sectional dimension of cutter bar (LxW) 40x50mm
  • Main motor 37 kw
  • Feeding motor 1.3 / 1.8 kw
  • Overall Dimensions: 3,675 mm (L) x 3,355 mm (W) x 5,100 mm (H)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
