Zhongyang Sams Vertical Boring Machine


China VC5116E Single Column Vertical Lathe

NBVDY008:

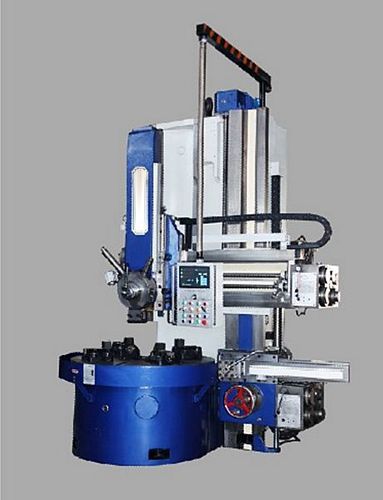

New, China VC5116E Single Column Vertical Lathe

  • Max turning diameter of vertical tool post 1600mm
  • Table diameter 1400mm
  • Max height of workpiece 1400mm
  • Max weight of workpiece 5 ton
  • Rotate range of table 5-160 r/min
  • Stage no. of variable speed 16 mechanical gear
  • Feeding range of vertical  post 0.1-500 mm/min
  • Feeding stage no. of vertical tool post: stepless
  • Max cutting force of vertical tool post 25 Kn
  • Max torque of table 25 Kn.m
  • Horizontal travel of vertical tool post 1000mm
  • Vertical stroke of vertical tool post 1000mm
  • Beam stroke 850mm
  • Tool rest rapid traverse speed 3000 mm/min
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
