Zhongyang Sams Vertical Boring Machine

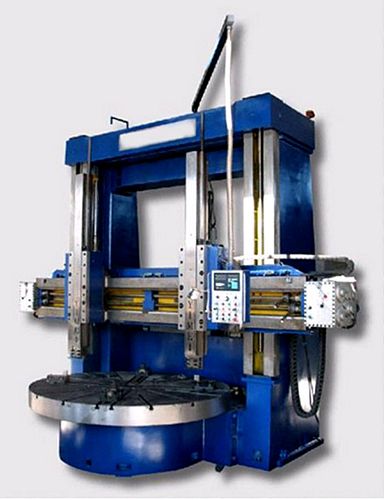

China CQ5240E/2830 Double Column Vertical Lathe


New, China CQ5240E Double Column Vertical Lathe

  • Max turning diameter 4000mm
  • Table diameter 2830mm
  • Max turning height 2000mm
  • Max weight of workpiece 16 ton
  • Max cutting force of right tool post 35 Kn; left tool post 30 Kn
  • Max torque of table 63 Kn.m
  • Rotate range of table 2-63 r/min
  • Speed change stage of worktable 16 step
  • Feeding range 0.25-90 mm
  • Level stroke of tool post 2250mm
  • Vertical stroke of tool post 1000mm
  • Beam moving speed 350 mm/min
  • Tool rest rapid traverse speed 1560 mm/min
  • Moving degree limit of vertical tool post ±30°
  • Main motor 55 kw
  • Weight approximately 48 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
