China CK5112E (Semi-Closed) CNC Single Column Vertical Lathe

NBVDY004:

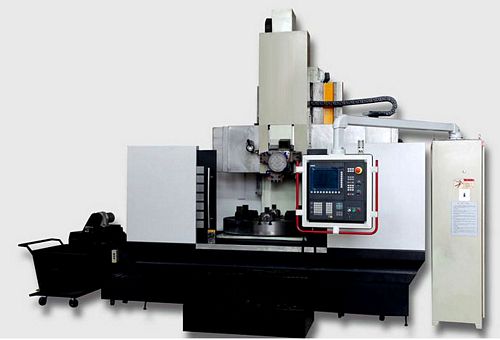

New, China CK5112E (Semi-Closed) CNC Single Column Vertical Lathe

  • Max turning diameter of vertical post 1250mm
  • Table diameter 1000mm
  • CNC control: Fanuc 0i td
  • Max height of workpiece 1000mm
  • Max weight of workpiece 3.2 ton
  • Rotate range of table 0.5-250 r/min
  • Stage no. of variable speed: 4 gear + stepless
  • Max cutting force of vertical post 25,000 N
  • Max torque of table 20,000 N.m
  • Level stroke of vertical post 850mm
  • Vertical stroke of vertical post 700mm
  • Beam stroke 650mm
  • Tool rest rapid traverse speed 10,000/6000 mm heavy cutting type
  • Beam lifting speed 440 m/min
  • Section of cutter bar: (L x W) 32 x 32mm
  • Accuracy of positioning 0.03mm
  • Accuracy of repeatability positioning 0.015mm
  • Machining accuracy IT7
  • Main motor 30 kw
  • Water pump 0.55 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
