China DVTCK5263 Double Column CNC Vertical Lathe

NBVDY001:

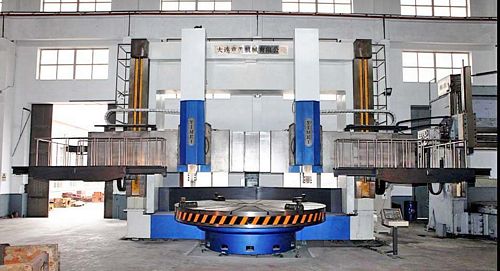

New, China DVTCK5263 Double Column CNC Vertical Lathe

  • Max turning diameter of vertical tool post 6300mm
  • Table diameter 4300mm
  • Control: Siemens 802DSL system
  • Max turning height 3200mm
  • Max weight of workpiece 50 T
  • Max cutting force of right tool post 50 Kn
  • Max cuttting force of left tool post 40 Kn
  • Max total cutting force 90 Kn
  • Max torque of table 100 Kn.m
  • Stage number of variable speed of table: 2 gear
  • Variable speed range of table 0.5 - 40 mm
  • Feeding stage number: AC servo stepless
  • Feeding range 0.1 - 2000 mm
  • Level stroke of tool post 3450 mm
  • Vertical stroke of tool post 1600 mm
  • Beam moving speed 380 mm/min
  • Tool rest rapid traverse 4000 mm/min
  • Max swivel angle of tool post ±30°
  • Accuracy of positioning 0.03mm
  • Accuracy of repeatability positioning 0.015mm
  • Machining accuracy IT7
  • Main motor DC75 Kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
