Zhongyang Sams Vertical Boring Machine

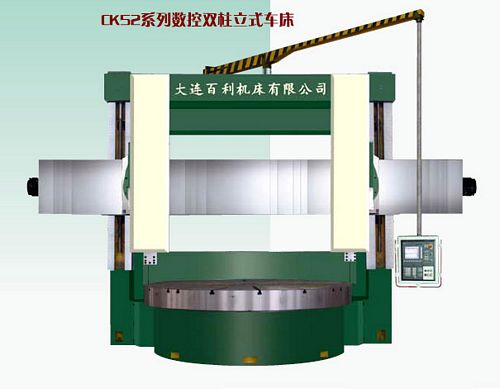

China CK5263/2 CNC Double Column Vertical Lathe

NBVDB072:

New, China CK5263/2 CNC Double Column Vertical Lathe

  • Max cutting diameter 6300mm
  • Table diameter 5700mm
  • Max height of workpiece 4000mm
  • Max weight of workpiece 80 ton
  • Max torque of table 128 KN.m
  • Range of table speeds 0.34 - 34 r/min, off 16
  • Max cutting force of rail head 60 KN
  • Swivel of rail head ±30°
  • Range of feed rates 0.2 - 145 mm/min
  • Horizontal travel of rail head 3400mm
  • Ram travel of rail head 2000mm
  • Rapid traverse of tool head 2500 mm/min
  • Height of tool bar section (WxH): 60 x 60 mm
  • Main motor DC:75 kW
  • Overall Dimensions: 11,500 mm (L) x 7,500 mm (W) x 10,850 mm (H)
  • Weight approximately 180 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
