Zhongyang Sams Vertical Boring Machine


China C5110 Single Column Vertical Lathe

NBVDB064:

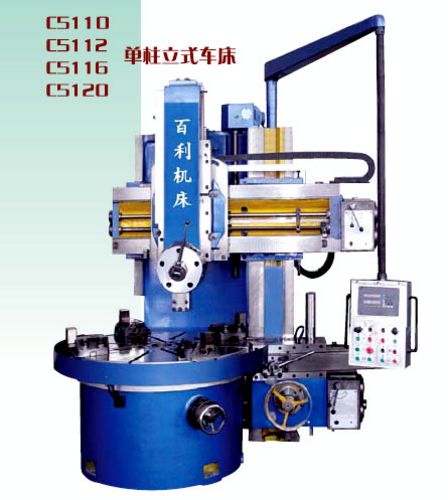

New, China C5110 Single Column Vertical Lathe

  • Max turning diameter 1000mm
  • Table diameter 900mm
  • Max weight of workpiece 2 ton
  • Max height of workpiece 800mm
  • Range of table speeds 8 - 250 r/min, off 16
  • Horizontal travel of rail head 670mm
  • Vertical travel of rail head 650mm
  • Horizontal travel of side head 500mm
  • Vertical travel of side head 810mm
  • Main motor 18.5 kW
  • Overall Dimensions: 2,817 mm (L) x 2,200 mm (W) x 2,760 mm (H)
  • Weight approximately 8.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
