Sunshine Innovation Sams Vertical Boring Machine

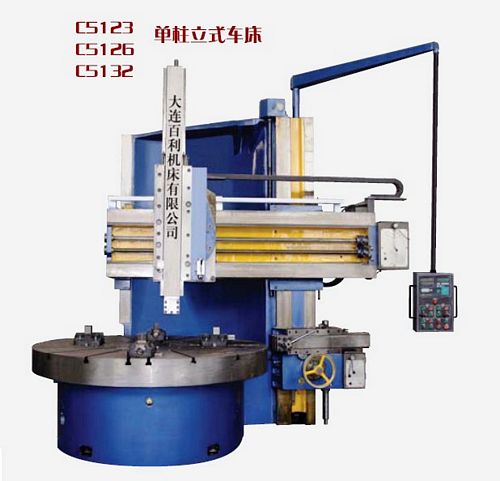

China C5132/1 Single Column Vertical Lathe

NBVDB055:

New, China C5132/1 Single Column Vertical Lathe

  • Max turning diameter 3200mm
  • Table diameter 2500mm
  • Max weight of workpiece 12 ton
  • Max height of workpiece 1600mm
  • Range of table speeds 2 - 63 r/min, off 16
  • Horizontal travel of rail head 1800mm
  • Vertical travel of rail head 1000mm
  • Horizontal travel of side head 630mm
  • Vertical travel of side head 1150mm
  • Main motor 37 kW
  • Overall Dimensions: 4,950 mm (L) x 4,100 mm (W) x 3,800 mm (H)
  • Weight approximately 28 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
