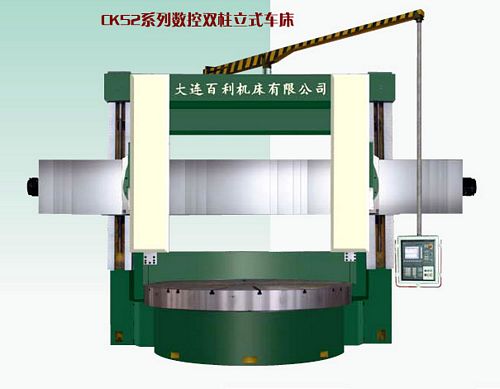

New, China CK5250/2 CNC Double Column Vertical Lathe
- Max cutting diameter 5000mm
- Table diameter 4500mm
- Max height of workpiece 3150mm
- Max weight of workpiece 40 ton
- Max torque of table 100 KN.m
- Range of table speeds 0.42 - 42 r/min, off 16
- Max cutting force of rail head 50 KN
- Swivel of rail head ±30°
- Range of feed rates 0.2 - 145 mm/min
- Horizontal travel of rail head 2765mm
- Ram travel of rail head 1600/2000mm
- Rapid traverse of tool head 2500 mm/min
- Height of tool bar section (WxH): 50 x 50 mm
- Main motor DC:75 kW
- Overall Dimensions: 10,000 mm (L) x 6,870 mm (W) x 9,760 mm (H)
- Weight approximately 100 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
