Sunshine Innovation Sams Vertical Boring Machine

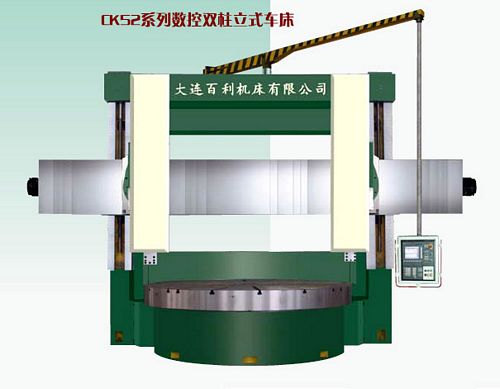

China CKQ5250/1 CNC Double Column Vertical Lathe

NBVDB047:

New, China CKQ5250/1 CNC Double Column Vertical Lathe

  • Max cutting diameter 5000mm
  • Table diameter 3200/4000mm
  • Max height of workpiece 2000mm
  • Max weight of workpiece 32 ton
  • Max torque of table 80 KN.m
  • Range of table speeds 2 - 63 r/min, off 16
  • Max cutting force of rail head 45 KN
  • Swivel of rail head ±30°
  • Range of feed rates 0.2 - 145 mm/min
  • Horizontal travel of rail head 2765mm
  • Ram travel of rail head 1250/1600mm
  • Rapid traverse of tool head 1550 mm/min
  • Height of tool bar section (WxH): 50 x 50 mm
  • Main motor AC:55 kW
  • Overall Dimensions: 7,900 mm (L) x 5,700 mm (W) x 5,200 mm (H)
  • Weight approximately 70 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
