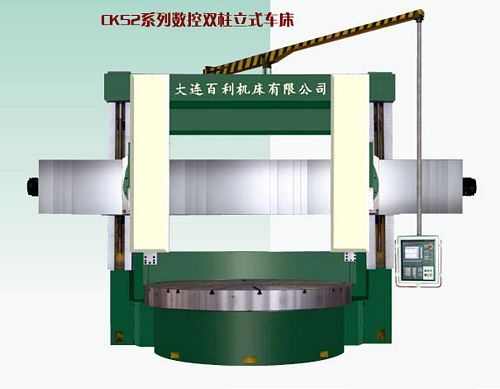

China CKQ5240/2 CNC Double Column Vertical Lathe


New, China CKQ5240/2 CNC Double Column Vertical Lathe

  • Max cutting diameter 4000mm
  • Table diameter 2830/3150mm
  • Max height of workpiece 2000mm
  • Max weight of workpiece 15 ton
  • Max torque of table 63 KN.m
  • Range of table speeds 2 - 63 r/min, off 16
  • Max cutting force of rail head 35 KN
  • Swivel of rail head ±30°
  • Range of feed rates 0.2 - 145 mm/min
  • Horizontal travel of rail head 2150mm
  • Ram travel of rail head 1250mm
  • Rapid traverse of tool head 1550 mm/min
  • Height of tool bar section (WxH): 40 x 50 mm
  • Main motor AC:55 kW
  • Overall Dimensions: 6,900 mm (L) x 5,100 mm (W) x 5,200 mm (H)
  • Approx weight 36/38 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
