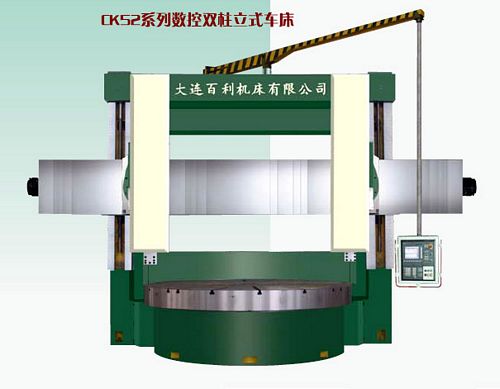

New, China CK5231/1 CNC Double Column Vertical Lathe
- Max cutting diameter 3150mm
- Table diameter 2250mm
- Max height of workpiece 1600mm
- Max weight of workpiece 15 ton
- Max torque of table 63 KN.m
- Range of table speeds 2 - 63 r/min, off 16
- Max cutting force of rail head 30 KN
- Swivel of rail head ±30°
- Range of feed rates 0.2 - 145 mm/min
- Horizontal travel of rail head 1725mm
- Ram travel of rail head 1000mm
- Rapid traverse of tool head 1550 mm/min
- Height of tool bar section (WxH): 40 x 50 mm
- Main motor AC:55 kW
- Overall Dimensions: 6,050 mm (L) x 4,400 mm (W) x 4,930 mm (H)
- Weight approximately 35 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
Vertical Boring Machine Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
The specialist in metalworking and fabrication machinery.
Sedin 1516 VTL
Max diameter 1600mm
Max height 1000mm
Sedin 1512 Vertical Lathe
Turning diameter 1250mm
Workpiece height 1000mm
