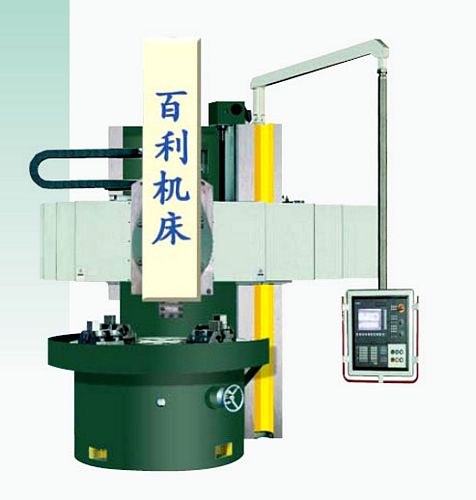

New, China CK5126/2 CNC Single Column Vertical Lathe
- Max cutting diameter 2600mm
- Table diameter 2000/2300mm
- Max height of workpiece 1800mm
- Max weight of workpiece 10 ton
- Max torque of table 37 KN.m
- Range of table speeds 1.2 - 40 r/min, off 16
- Max cutting force of rail head 22 KN, side head 18 KN
- Swivel of rail head ±30°
- Range of feed rates 0.8 - 86 mm/min, off 12
- Horizontal travel of rail head 1600mm
- Ram travel of rail head 1000mm
- Ram horizontal travel of side head 730mm
- Vertical travel of side head 1180mm
- Rapid traverse of tool heads 1800 mm/min
- Rise-and-fall speed of beam 440mm
- Height of tool bar section (WxH): 30 x 40 mm
- Main motor 37 kW
- Overall Dimensions: 3,300 mm (L) x 4,000 mm (W) x 3,800 mm (H)
- Weight approximately 20 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
