China CK5123/1 CNC Single Column Vertical Lathe

NBVDB035:

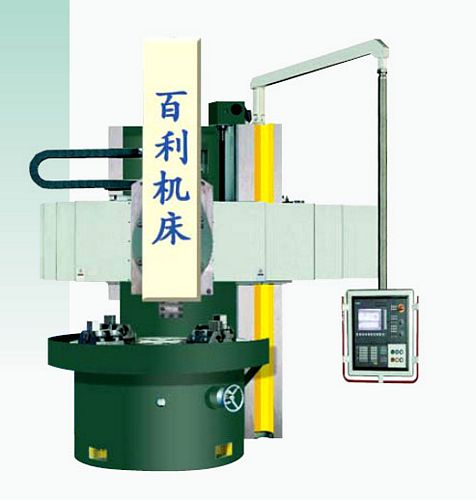

New, China CK5123/1 CNC Single Column Vertical Lathe

  • Max cutting diameter 2300mm
  • Table diameter 2000mm
  • Max height of workpiece 1350mm
  • Max weight of workpiece 8 ton
  • Max torque of table 35 KN.m
  • Range of table speeds 3.3 - 125 r/min (16 steps)
  • Max cutting force of rail head 22 KN, side head 18 KN
  • Swivel of rail head ±30°
  • Range of feed rates 0.8 - 86 mm/min (12 steps)
  • Horizontal travel of rail head 1180mm
  • Ram travel of rail head 1000mm
  • Ram horizontal travel of side head 630mm
  • Vertical travel of side head 1180mm
  • Rapid traverse of tool head 1800 mm/min
  • Rise-and-fall speed of beam 440mm
  • Height of tool bar section (WxH): 30 x 40 mm
  • Main motor 30 kW
  • Overall Dimensions: 3,210 mm (L) x 2,850 mm (W) x 3,300 mm (H)
  • Weight approximately 18 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
