Vertical Boring Machine

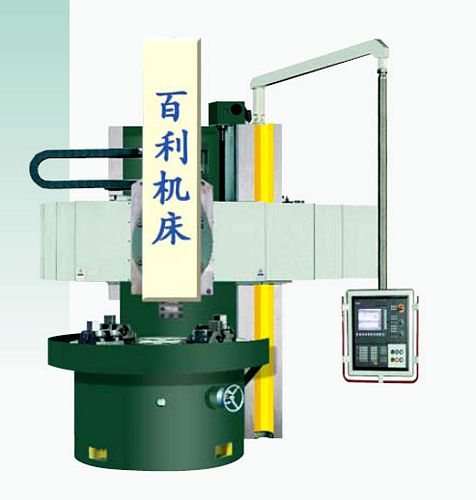

China CK5120 CNC Single Column Vertical Lathe

NBVDB034:

New, China CNC CK5120 Single Column Vertical Lathe

Max cutting diameter 2000mm
Table diameter 1800mm
Max height of workpiece 1250mm
Max weight of workpiece 8 ton
Max torque of table 32 KN.m
Range of table speeds 2.5 - 125 r/min, off 16
Max cutting force of rail head 22 KN, side head 18 KN
Swivel of rail head ±30°
Range of feed rates 0.8 - 86 mm/min, off 12
Horizontal travel of rail head 1050mm
Ram travel of rail head 800mm
Ram horizontal travel of side head 630mm
Vertical travel of side head 1180mm
Rapid traverse of tool head 1800 mm/min
Rise-and-fall speed of beam 440mm
Height of tool bar section (WxH): 30 x 40 mm
Main motor 30 kW
Overall Dimensions: 3,200 mm (L) x 2,800 mm (W) x 4,000 mm (H)
Weight approximately 18 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
