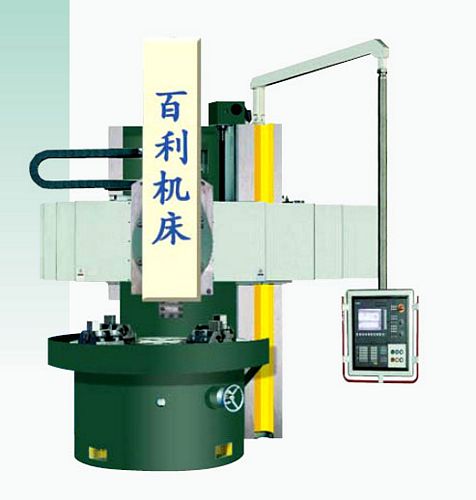

New, China CK5116/1 CNC Single Column Vertical Lathe
- Max cutting diameter 1600mm
- Table diameter 1400mm
- Max height of workpiece 1200mm
- Max weight of workpiece 5 ton
- Max torque of table 25 KN.m
- Range of table speeds 5 - 160 r/min, off 16
- Max cutting force of rail head 22 KN, side head 18 KN
- Swivel of rail head ±30°
- Range of feed rates 0.8 - 86 mm/min, off 12
- Horizontal travel of rail head 915mm
- Ram travel of rail head 800mm
- Ram horizontal travel of side head 600mm
- Vertical travel of side head 980mm
- Rapid traverse of tool heads 1800 mm/min
- Rise-and-fall speed of beam 440mm
- Height of tool bar section (WxH): 30 x 40 mm
- Main motor 30 kW
- Overall Dimensions: 2,830 mm (L) x 2,670 mm (W) x 3,010 mm (H)
- Weight approximately 12 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
Vertical Boring Machine Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
We will source worldwide for machinery if we do not carry machinery to your required capacity.
