China CK5112 CNC Single Column Vertical Lathe

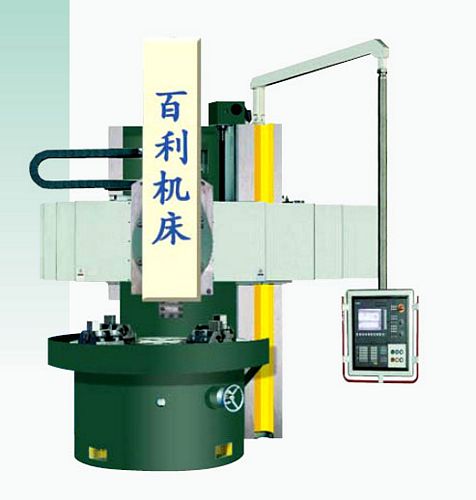

New, China CK5112 CNC Single Column Vertical Lathe

  • Max cutting diameter 1250mm
  • Table diameter 1000mm
  • Max height of workpiece 1000mm
  • Max weight of workpiece 3.5 ton
  • Max torque of table 17 KN.m
  • Range of table speeds 6.3 - 200 r/min, off 16
  • Max cutting force of rail head 18 KN, side head 13 KN
  • Swivel of rail head ±30°
  • Range of feed rates 0.8 - 86 mm/min, off 12
  • Horizontal travel of rail head 700mm
  • Ram travel of rail head 650mm
  • Ram horizontal travel of side head 500mm
  • Vertical travel of side head 900mm
  • Rapid traverse of tool heads 1800 mm/min
  • Rise-and-fall speed of beam 440mm
  • Height of tool bar section (WxH): 30 x 40 mm
  • Main motor 22 kW
  • Overall Dimensions: 2,227 mm (L) x 2,540 mm (W) x 3,403 mm (H)
  • Weight approximately 9.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
