China C5280 Double Column Vertical Lathe

NBVDB029:

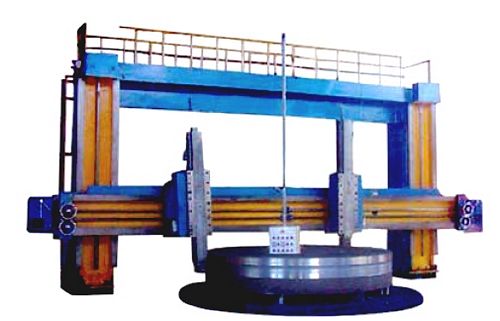

New, China C5280 Double Column Vertical Lathe

  • Max cutting diameter 8100mm
  • Table diameter 5500mm
  • Max weight of workpiece 40,000 kg
  • Max height of workpiece 4000mm
  • Range of table speeds 1 - 16 r/min
  • Total cutting force 55860 N
  • Max cutting force of right head 29400 N, left head 26460 N
  • Max torque of table 75160 N.m
  • Range of feed rates: Right head 0.20 - 145 mm/min (18 steps), Left head 0.20 - 145 mm/min (18 steps)
  • Rapid traverse of tool head 1550 mm/min
  • Travel of beam 4500mm
  • Traverse of beam 350 mm/min
  • Horizontal travel of side head 4150mm
  • Vertical travel of side head 1700mm
  • Height of tool bar section (WxH): 40 x 50 mm
  • Swivel of head ±30°
  • Main motor 110 kW
  • Overall Dimensions: 16,500 mm (L) x 10,850 mm (W) x 8,200 mm (H)
  • Weight approximately 130 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
