Zhongyang Sams Vertical Boring Machine

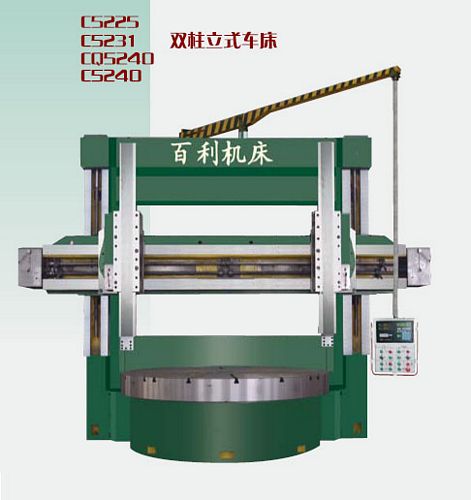

China CQ5240/1 Double Column Vertical Lathe

NBVDB023:

New, China CQ5240/1 Double Column Vertical Lathe

  • Max cutting diameter 4000mm
  • Table diameter 2830/3200mm
  • Max weight of workpiece 10 ton
  • Max height of workpiece 1600mm
  • Range of table speeds 2 - 63 r/min, off 16
  • Horizontal travel of rail head 2150mm
  • Vertical travel of rail head 1000mm
  • Main motor 55 kW
  • Approx weight 36/38 ton
  • Overall Dimensions: 6,900 mm (L) x 5,100 mm (W) x 4,800 mm (H)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
