Zhongyang Sams Vertical Boring Machine

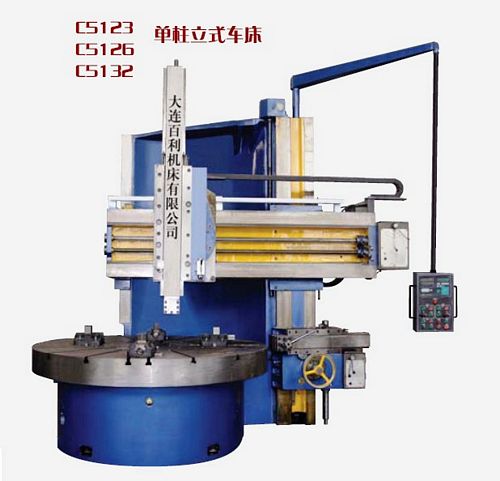

China C5123/1 Single Column Vertical Lathe

NBVDB009:

New, China C5123/1 Single Column Vertical Lathe

  • Max cutting diameter 2300mm
  • Table diameter 2000mm
  • Max weight of workpiece 8 ton
  • Max height of workpiece 1350mm
  • Range of table speeds 3.2 - 100 r/min, off 16
  • Horizontal travel of rail head 1200mm
  • Vertical travel of rail head 800mm
  • Horizontal travel of side head 630mm
  • Vertical travel of side head 1180mm
  • Main motor 30 kW
  • Overall Dimensions: 3,210 mm (L) x 2,850 mm (W) x 3,300 mm (H)
  • Weight approximately 19 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
