Zhongyang Sams Vertical Boring Machine

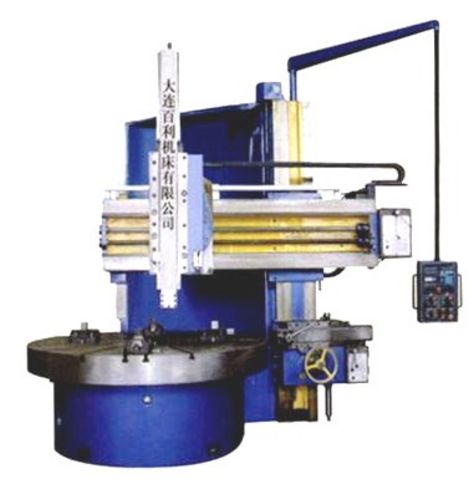

China C5116/1 Single Column Vertical Lathe


New, China C5116/1 Single Column Vertical Lathe

  • Max cutting diameter 1600mm
  • Table diameter 1400mm
  • Max weight of workpiece 5 ton
  • Max height of workpiece 1000mm
  • Range of table speeds 5 - 160 r/min, off 16
  • Horizontal travel of rail head 915mm
  • Vertical travel of rail head 800mm
  • Horizontal travel of side head 600mm
  • Vertical travel of side head 900mm
  • Main motor 22 kW
  • Overall Dimensions: 2,830 mm (L) x 2,670 mm (W) x 2,810 mm (H)
  • Weight approximately 12 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
