Zhongyang Sams Vertical Boring Machine


China C518 Single Column Vertical Lathe

NBVDB001:

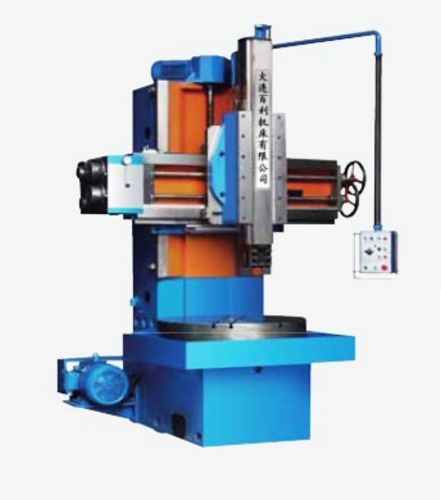

New, China C518 Single Column Vertical Lathe

  • Max turning diameter 800mm
  • Table diameter 720mm
  • Max weight of workpiece 1.2 ton
  • Max height of workpiece 800mm
  • Range of table speeds 45 - 200 r/min, off 3
  • Horizontal travel of rail head 570mm
  • Vertical travel of rail head 650mm
  • Swivel of rail head ±30°
  • Range of feed rates 15 - 45 mm/min, off 12
  • Rapid traverse of tool heads 1800mm
  • Rise and fall speed of 440mm
  • Height of tool bar section (WxH): 30 x 30mm
  • Main motor 11 kW
  • Overall Dimensions: 2,080 mm (L) x 2,400 mm (W) x 2,730 mm (H)
  • Weight approximately 6.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe machine, vertical boring machine, vertical boring mills, vertical turret lathe machine, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
