Zhongyang Sams Jig Boring Machine


China TK42100/2 Jig Boring Machine

NBJKM008:

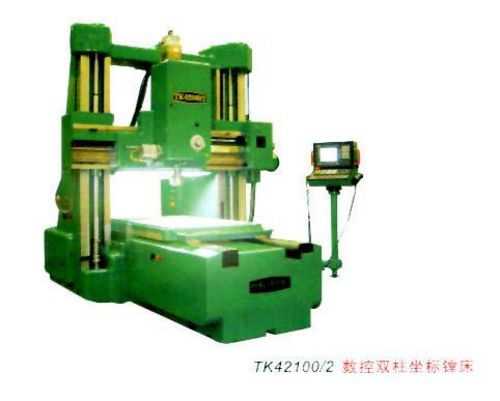

New, China TK42100/2 Jig Boring Machine

  • Table Size (W x L) 1020 x 1600 mm
  • Max. Load of Table 2000 kg
  • Longitudinal Travel of Table 1400 mm
  • Transverse Travel of Spindle Head 1000 mm
  • Up And Down Travel of Cross Beam 800 mm
  • Vertical Travel of Spindle Quill 300 mm
  • Horizontal Spindle Quill Travel 300 mm
  • Vertical Travel of Horizontal Spindle Head 800 mm
  • Spindle Diameter 120 mm
  • Nose Taper of Spindle 3:20
  • Vertical Spindle Speed 10-2000 RPM
  • Horizontal Spindle Speed 40-1000 RPM
  • Power of Spindle Motor 7/9.25 kW
  • Max. Drilling Capacity of Spindle 50 mm
  • Max. Boring Capacity of Spindle 250 mm
  • Measuring/CNC System SIEMENS 840D
  • Weight approximately 17 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used jig boring machine (jig borer, jig boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
