Zhongyang Sams In-Situ Boring Machine


Sir WS7 Boring and Welding Machine

NBISR009:

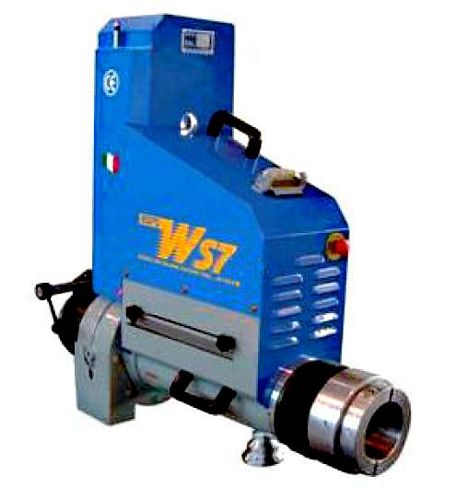

New, Sir WS7 Boring and Welding Machine

  • Boring diameter 400mm -1200mm (15.75" - 47.24")
  • Welding diameter 350mm - 1200mm (13.78" - 47.24")
  • Tool Holder Shaft dia 100mm (3.94")
  • Tool Holder Shaft length 3,000 mm single shaft (potentially connectable)
  • Welding technology: SPIRAL (continuous with variable step)
  • Longitudinal stroke: Unlimited with step of 260mm (10.24")
  • Rotation motor CC NORMA CE
  • Feed motor CC NORMA CE
  • Feed: ELECTRIC - MECHANICAL
  • Output torque at the bar: 4,200 Nm (41 RPM)
  • Max. speed 41 RPM
  • Feed rate 0 - 0.4 mm (0 - 0.02 in/rev) RPM
  • Max. feed speed 53 mm/min
  • Removal material 172 cm³/min
  • Drive unit weight 105 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used in-situ boring machine (in situ boring machine, in situ line boring machine, portable borer, portable line borer, portable hole borer, portable boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
