Zhongyang Sams In-Situ Boring Machine

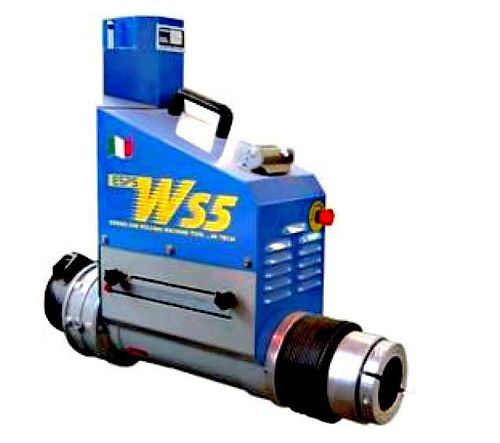

Sir WS5 Boring and Welding Machine

NBISR008:

New, Sir WS5 Boring and Welding Machine

  • Boring diameter 180mm - 1000mm (7.09" - 39.37")
  • Welding diameter 100mm - 1000mm (3.94" - 39.37")
  • Tool Holder Shaft dia 80mm (3.15")
  • Tool Holder Shaft length 3,000 mm single shaft (potentially connectable)
  • Welding technology: SPIRAL (continuous with variable step)
  • Longitudinal stroke: Unlimited with step of 260mm (10.24")
  • Rotation motor CC NORMA CE
  • Feed motor CC NORMA CE
  • Feed: ELECTRIC - MECHANICAL
  • Output torque at the bar: 1,700 Nm (100 RPM)
  • Max. speed 100 RPM
  • Feed rate 0 - 0.3 mm (0 - 0.01 in/rev) RPM
  • Max. feed speed 66 mm/min
  • Removal material 95 cm³/min
  • Drive unit weight 55 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used in-situ boring machine (in situ boring machine, in situ line boring machine, portable borer, portable line borer, portable hole borer, portable boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
