Zhongyang Sams In-Situ Boring Machine

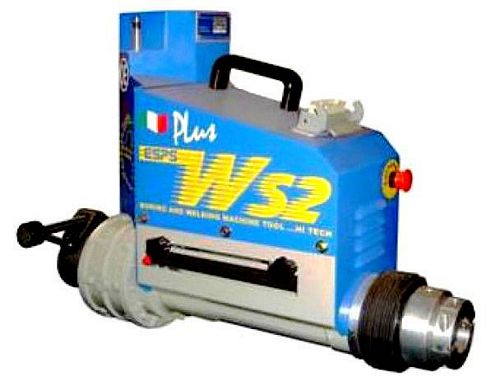

Sir WS2 Plus Boring and Welding Machine

NBISR006:

New, Sir WS2 Plus Boring and Welding Machine

  • Boring diameter 32mm - 450mm (1.25" - 17.72")
  • Welding diameter 25mm - 450mm (0.98" - 17.72")
  • Tool holder shaft dia 50mm (1.97")
  • Tool holder length 2,660 usable mm (N° 3 connectable bars 1000mm+1000mm+720mm)
  • Welding technology: SPIRAL (continuous with variable step)
  • Longitudinal stroke: Unlimited with step of 220mm (8.66")
  • Rotation motor CC NORMA CE
  • Feed motor CC NORMA CE
  • Feed: ELECTRIC - MECHANICAL
  • Output torque at the bar: 290 Nm (266 RPM)
  • Max. speed 266 RPM
  • Feed rate 0 - 0.5mm (0 - 0.02 in/rev) RPM
  • Max. feed speed 285 mm/min
  • Removal material 23 cm³/min
  • Drive unit weight 35 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used in-situ boring machine (in situ boring machine, in situ line boring machine, portable borer, portable line borer, portable hole borer, portable boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
