Zhongyang Sams In-Situ Boring Machine

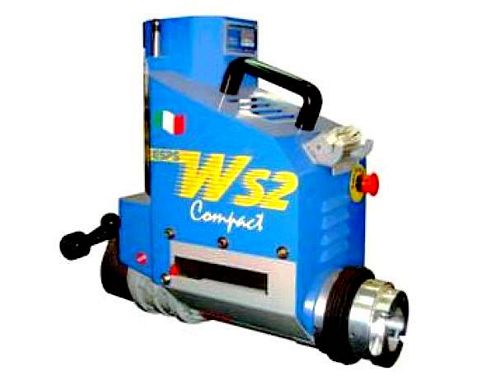

Sir WS2 Compact Boring and Welding Machine

NBISR005:

New, Sir WS2 Compact Boring and Welding Machine

  • Boring diameter 22mm - 400mm (0.87" - 15.75")
  • Welding diameter 25mm - 400mm (0.98" - 15.75")
  • Tool holder shaft dia 40mm (1.57")
  • Tool holder length 2,600 usable mm (N° 3 connectable bars 1000 x 1000 x 730mm)
  • Welding technology: SPIRAL (continuous with variable step)
  • Longitudinal stroke: Unlimited with step of 120mm (4.7")
  • Rotation motor CC NORMA CE
  • Feed motor CC NORMA CE
  • Feed: ELECTRIC - MECHANICAL
  • Output torque at the bar: 290 Nm (266 RPM)
  • Max. speed 266 RPM
  • Feed rate 0 - 0.5mm (0 - 0.02 in/rev) RPM
  • Max. feed speed 285 mm/min
  • Removal material 23 cm³/min
  • Drive unit weight 27 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used in-situ boring machine (in situ boring machine, in situ line boring machine, portable borer, portable line borer, portable hole borer, portable boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
