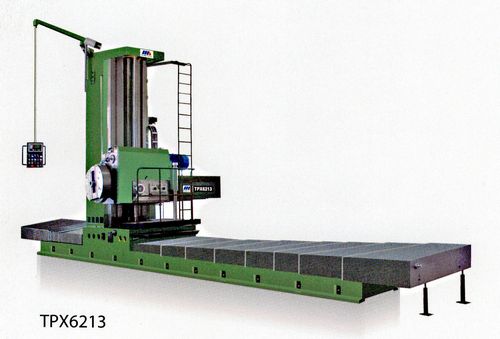

China TPX6213x90 Horizontal Boring & Milling Machine


New, China TPX6213x90 Horizontal Boring & Milling Machine

  • Spindle diameter 130mm
  • Spindle taper Metric 80 (optional ISO7:24No.50)
  • Max spindle torque 3136 N.m
  • Max spindle thrust 31360 N
  • Spindle speeds 4 - 800 r/min, off 24
  • Max facing head torque 4900 N.m
  • Facing head diameter 750mm
  • Facing head speeds 2.5 - 125 r/min, off 18
  • X-axis 9000mm
  • Y-axis travel 1600/2000/2500 mm
  • Max travel of boring spindle (W-axis) 900 mm
  • Slide travel of facing plate (U-axis) 250 mm
  • Rapid travel (X/Y/U/W) 2500 mm/min
  • Feed rates 0.05 - 8 / 0.01 - 2 mm/rev
  • Power of main motor 15 kW
  • Measurement system reading precision (X/Y) 0.005mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
