Zhongyang Sams Horizontal Borer


China TPX6113B/2 Horizontal Boring & Milling Machine

NBHSY117:

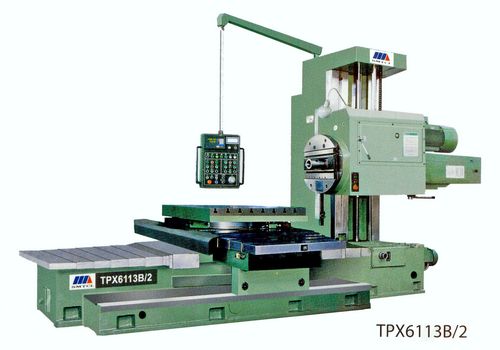

New, China TPX6113B/2 Horizontal Boring & Milling Machine

  • Spindle diameter 130mm
  • Work table size 1800 x 1600mm
  • Spindle taper ISO7:24, No. 50
  • Max spindle torque 2950 Nm
  • Max spindle thrust 31360 N
  • Spindle speeds 8 - 800 r/min, stepless
  • Max torque of facing head 4694 Nm
  • Facing head diameter 750mm
  • Facing head speed 2.5 - 125 r/min, off 18
  • T-slot 28mm; No. of T-slot 10
  • Max load on table 10000 kg
  • X axis travel 1600mm
  • Y-axis travel 1400mm
  • Z-axis travel 2000mm (without tailstock)
  • Min distance between spindle center and work table 0mm
  • Slide travel of facing plate (U-axis) 250mm
  • Spindle travel (W-axis) 900mm
  • B-axis worktable rotary 360°
  • Rapid travel (X/Y/Z/W) 2500 mm/min
  • Feed range (X/Y/Z/W/U) 0.32 - 2500 mm/min
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
