China TPX6113B Horizontal Boring & Milling Machine

NBHSY116:

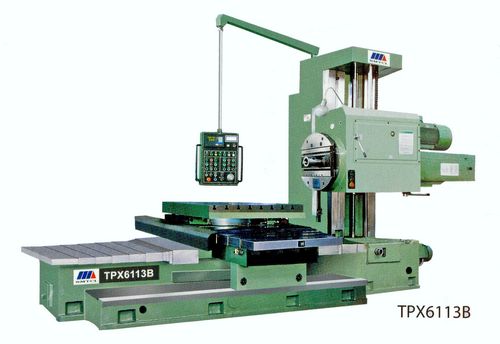

New, China TPX6113B Horizontal Boring & Milling Machine

  • Spindle diameter 130mm
  • Work table size 1600 x 1400mm
  • Spindle taper  ISO 7:24, No. 50
  • Max spindle torque 2950 Nm
  • Max spindle thrust 31360 N
  • Spindle speeds 8 - 800 r/min, stepless
  • Max torque of facing head 4694 Nm
  • Facing head diameter 750mm
  • Facing head speed 2.5 - 125 r/min, off 18
  • T-slot 28mm; No. of T-slot 10
  • Max load on table 8000 kg
  • X axis travel 1600mm
  • Y-axis travel 1400mm
  • Z-axis travel 1500mm (without tailstock)
  • Min distance between spindle center and work table 0mm
  • Slide travel of facing plate (U-axis) 250mm
  • Spindle travel (W-axis) 900mm
  • B-axis worktable rotary 360°
  • Rapid travel (X/Y/Z/W) 2500 mm/min
  • Feed range (X/Y/Z/W/U) 0.32 - 2500 mm/min
  • Power of main motor 18.5 kW
  • Measurement system reading precision (X/Y/Z) 0.005mm (Z optional)
  • B-axis measurement system reading precision 0.001° (B optional)
  • DRO for axis X and Y
  • Metric system
  • Overall Dimensions: 6,995 mm (L) x 3,647 mm (W) x 3,442 mm (H)
  • Weight approximately 25 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
