Zhongyang Sams Horizontal Borer

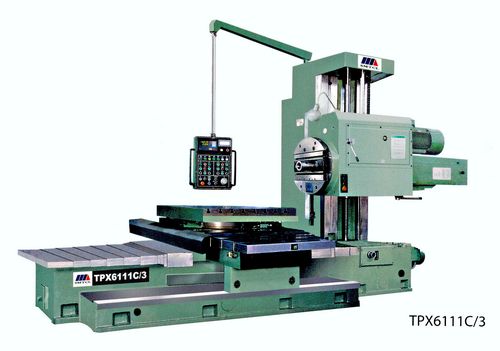

China TPX6111C/3 Horizontal Boring & Milling Machine

NBHSY115:

New, China TPX6111C/3 Horizontal Boring & Milling Machine

  • Spindle diameter 110mm
  • Work table size 1250 x 1100mm
  • Spindle taper ISO7:24 No. 50
  • Max spindle torque 1250 Nm
  • Max spindle thrust 12250 N
  • Spindle speeds 8 - 1100 r/min, stepless
  • Max torque of facing head 1960 Nm
  • Facing head diameter 630mm
  • Facing head speed 4 - 200 r/min, off 18
  • T-slot 22mm; No. of T-slot 10
  • Max load on table 3000 kg
  • X axis travel 1600mm
  • Y-axis travel 1200mm
  • Z-axis travel 1400mm (without tailstock)
  • Distance between spindle center and work table 0 - 1200 mm
  • Slide travel of facing plate (U-axis) 180 mm
  • Spindle travel (W-axis) 600mm
  • B-axis worktable rotary 360°
  • Rapid travel (X/Y/Z/W) 2500 mm/min
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
